The A1200NG is available for preordering and delivery starts in April 2025.

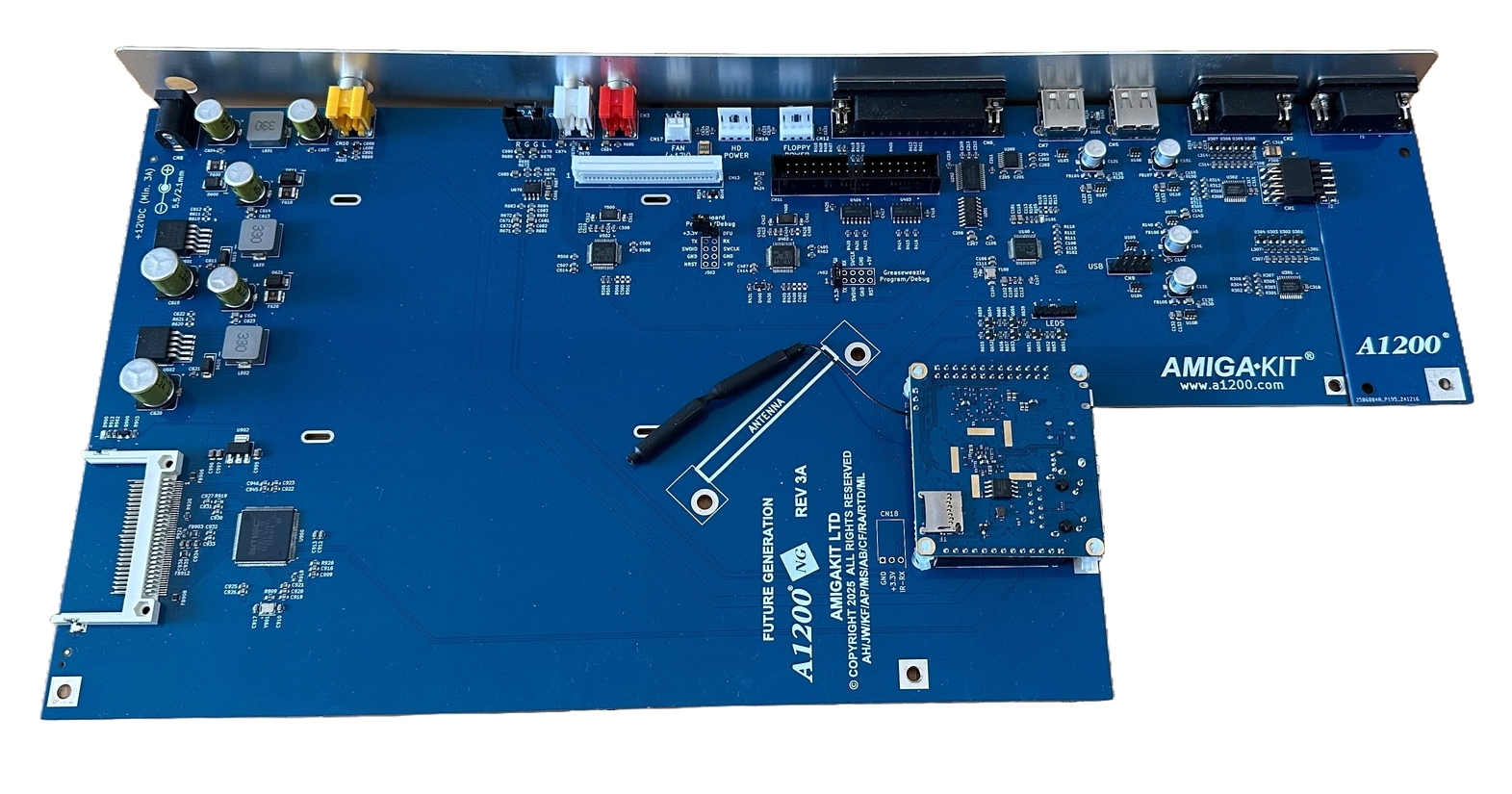

A1200NG motherboard revision 3A
The A1200NG motherboard fits into original Commodore Amiga 1200, Escom and reproduction desktop cases. The ports align with the holes in the case using the supplied backplate.
AmiBench is the desktop pre-installed with many famous classic applications such as Final Writer, OctaMED, Directory Opus, HippoPlayer, YAM and more. Create your own boot system: A1200NG supports installing of multiple operating systems with the corresponding ROMs.
Features:
Games menu: add, edit & launch ADF/HDF/WHDBoot games, scene demos & apps (OCS, ECS, AGA).
AmiBench: 1080p screenmode with 32-bit icon set. Run Classic 68k programs.
Dual 9-pin Joystick Ports: accepts Commodore compatible joysticks ¹
HDMI compatible 1080p output: plugs into HDMI compatible television or monitor
Wireless Internet: connects to AmiSphere for system updates and email
Bluetooth: optionally output audio to Bluetooth speaker
34-pin Floppy Header: read and write to real 880K floppy disks (Greaseweazle compatible)
RS232 Serial Port (DB25)
System RAM: 4GB in total. 1GB Fast Memory allocated for AmiBench.
Hard Drive: 64GB or 128GB option.
Internal USB headers for connection of optional USB to SATA or USB to IDE adapters.
External USB headers for connection of DrawBridge USB floppy disk drives, Mice, MIDI interfaces, Flash Drives.
Pre Installed Software:
AmiBench Release V46
Personal Paint (PPaint) V7.4
OctaMED V8
Directory Opus V4
Final Writer V7.2
YAM email client
JST
Utilities: EaglePlayer, HippoPlayer, Dock, Clock, Calendar
Games: Super Skidmarks, Thunderhell, Virtual GP, T-Racer
What is included?
A1200NG motherboard
ARM module (H618 Quad Core 1.5Ghz/4GB RAM)
64GB or 128GB micro SD card
HDMI cable with backplate (fits underneath floppy drive)

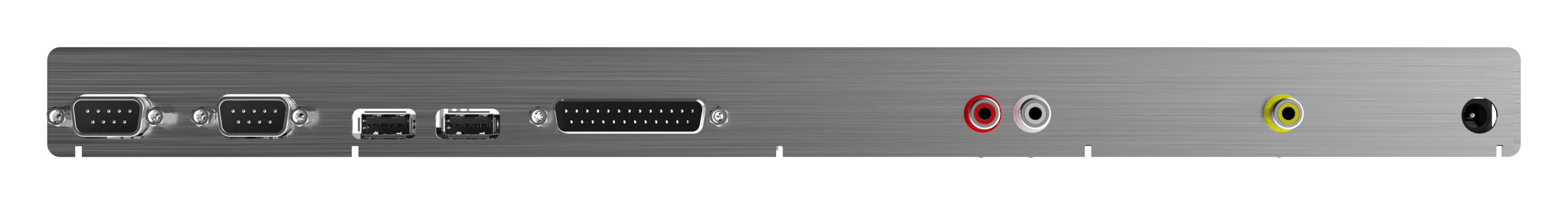

Metal backplate for ports
Power Supply Unit
Printed Colour Manual
A1200NG case badge
Silver foil serial case sticker
Hex bolts and screws
Product options:
A1200 9-pin joystick port 1 board
A1200 Triple LED adapter module
A1200 motherboard insulation layer
Rear External Ports:
9-pin Joystick
USB ports
25-pin Serial Port
Left / Right Audio RCA audio out
Composite (no driver support)
Power In Port
Compact Flash reader
Internal Connectors:
34-pin Floppy Disk Drive header
USB header (dual)
A1200 LED module header
A1200 keyboard ribbon header (31 pin)
4-pin Power header for optional floppy disk drive
4-pin Power header for optional SATA/IDE hard drive
2-pin Fan header
Speed Performance
The A1200NG delivers the following speed rating of 257 MIPs in SysInfo.
Floppy Disk Drive Compatibility
The A1200NG is compatible with the following floppy disk drives (not supplied):
PC compatible 1.44MB drive
Commodore original 880K / 1.76MB drive drive
It is recommended to use original 600 / 1200 floppy disk drives to fit into an original case.
¹ single 9-pin joystick port is available on motherboard and a second 9-pin joystick port is attached using a plug in board (product option).
